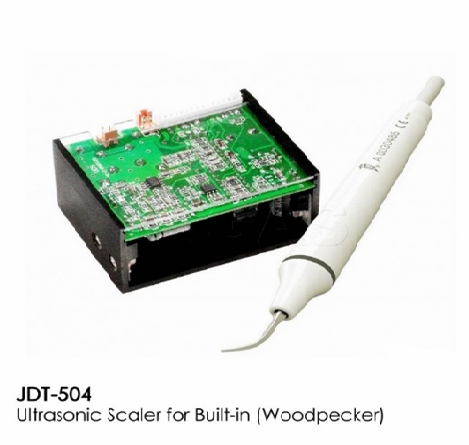

Built-in Scaler

Technical Specifications of ultrasonic scaler
A. Power input: With transformer 220 – 240V ~ 50Hz/60Hz 150mA
without transformer 24V~ 50Hz/60Hz 1.3A
B. Output primary tip Vibration excursion: ≤100um
C. Output half-excursion force:<2N
D. Output tip vibration frequency: UDS-N1: 30kHz+3kHz:   UDS-N2: 28kHz+3kHz
Output power: 3W to 20W
F. Water Pressure: 0.01MPa to 0.5MPa
G. Weight of main unit: 0.2kg
H. Main unit fuse: T1.6AL 250V
I. Weight of transformer: 1kg (optional)
J. Operating Mode: Continuous operation
K. Type of protection against electric shock: Class II equipment
L. Degree of protection against harmful ingress of water: Ordinary equipment
M. Degree of protection against harmful ingress of water: Ordinary equipment (IPX0)
N. Protection degree against water(used on the pedal): IPX1
O. Applied part of the equipment: handpiece and tip.
P. Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Equipment can not be used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.
