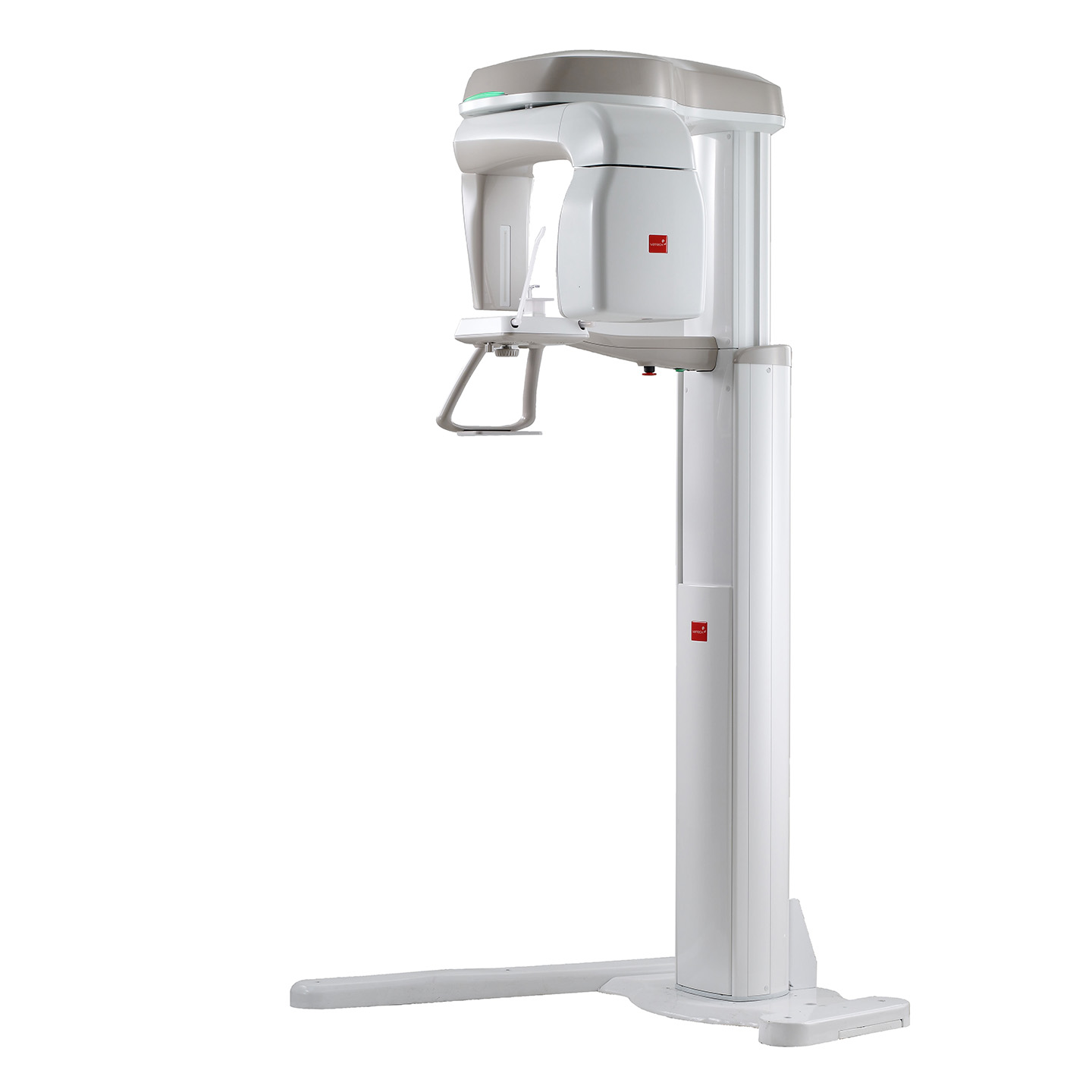

Vatech Pax-i

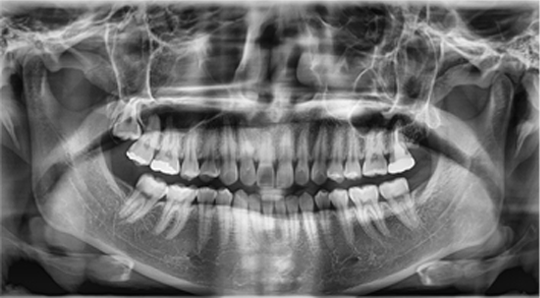

• Function: Digital panoramic (2D extraoral) imaging — no cephalometric scans if configured Pano-Only (PaX-i Pano).

Image Quality & Detector

• Sensor type: CMOS digital detector.
• Image modes supported: Standard panoramic, Orthogonal panoramic, Bitewing, TMJ, Sinus imaging modes (depending on capture program).

Exposure / Scan Timing

• Panoramic scan time:

• • Normal: ~10.1 sec
  • HD: ~13.5 sec
    (Typical timing for standard PaX-i pano)

X-ray Generator

• Focal spot size: 0.5 mm.
• Tube voltage (kVp): ~50 – 90 kVp.
• Tube current (mA): ~4 – 10 mA.
• Gray scale depth: 14-bit image processing.

Patient Positioning

• Position: Standing, including wheelchair accessible configurations.

Physical

• Weight (Pano only): ~90 kg without base.
• Machine footprint (approx): ~41.7 × 47.2 × 90.5 inches (WxDxH) for Pano-only unit.
